Angle Stop Valve: Definitive Guide, Types, Uses

An angle stop valve is the small, L‑shaped shut-off under your sink or toilet that prevents a small leak from becoming a big disaster. This guide explains how an angle stop valve works, which type to choose, how to install or replace one safely, and how to fix common issues fast.

What it is: A 90-degree, fixture-level shut-off for sinks, toilets, and appliances.
Why it matters: Isolate a single fixture for repairs or emergencies without shutting the main.
Quick picks: Prefer quarter-turn ball-type angle stops for fast, reliable shut-off.
Adoption: 90–95% of North American fixtures use dedicated angle stops (industry estimates).
Trend: Ball-valve stops now >60% of new installs; arrestor-equipped models rising (industry estimates).

Angle Stop Valve Basics: What It Is and Why It Matters

If you have ever reached under a sink to turn off the water, you used an angle stop. So what is an angle stop? It’s a compact shut-off valve that turns the water line 90 degrees toward the fixture. The L-shape saves space, lines up neatly with supply hoses, and lets you cut water to one sink or toilet without touching the main water supply. That simple control can stop a leak before it ruins cabinets, floors, or drywall—especially if a pipe bursts under an appliance or fixture and you need to turn off the water instantly.

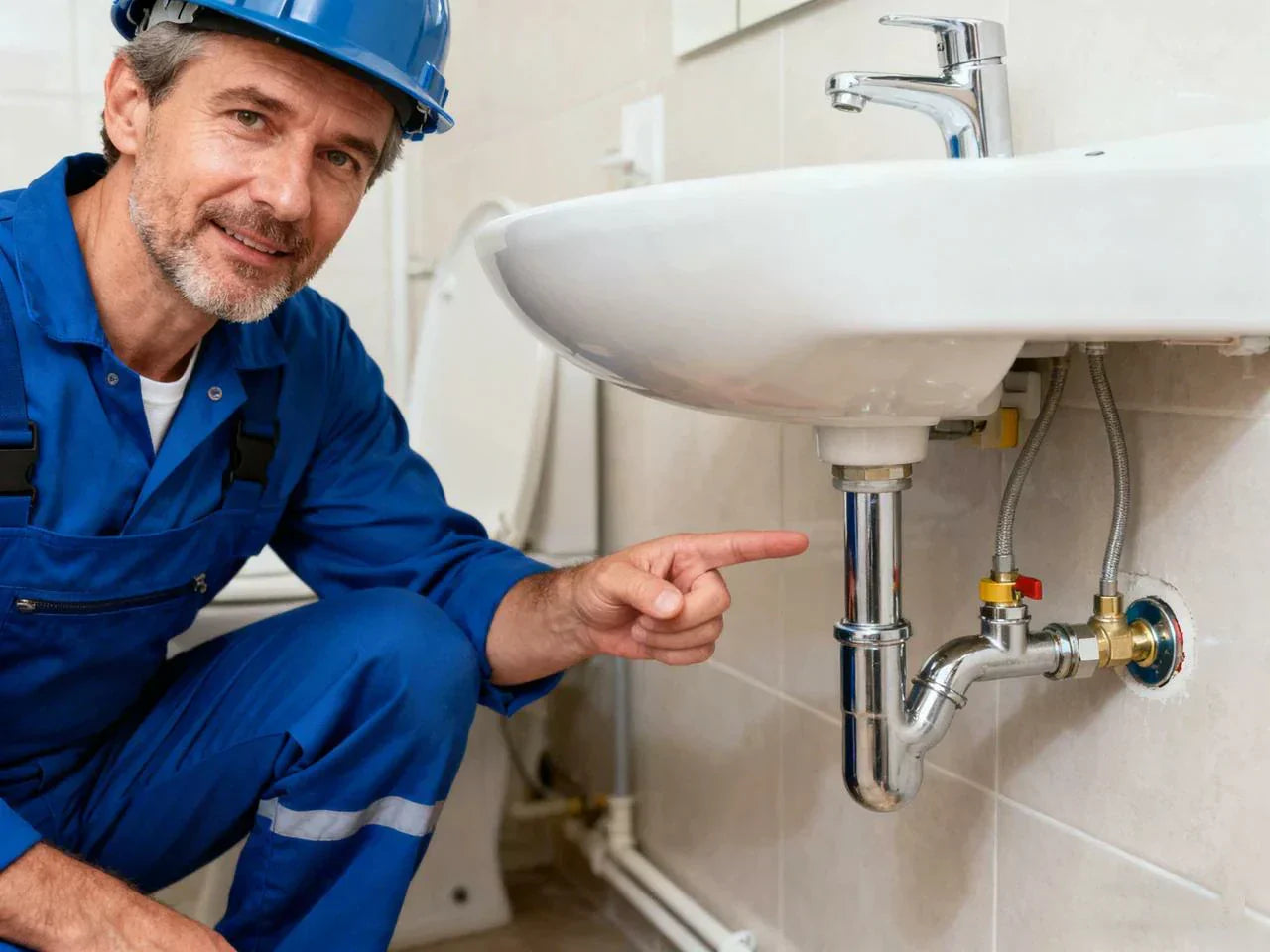

You’ll find angle stops under bathroom and kitchen sinks, behind toilets, and on water-using appliances like ice makers and some water heaters. A toilet angle stop is often visible on the wall behind the tank. Under-sink shutoffs usually sit at the back of the cabinet where the water line enters.

Angle stop vs. straight stop: Among fixture-level shut off valves, straight stop valves have an in-line inlet and outlet. Use it when the pipe needs to continue straight to the fixture. Use an angle stop when the supply exits the wall and must turn upward toward the fixture. In tight spaces, the angle layout is often the only option that fits.

Operation is simple. Modern angle stops are usually quarter-turn: rotate the handle 90 degrees to go from fully open to fully closed. Older multi-turn styles take several turns. In an emergency, those extra turns waste time, so many plumbers upgrade old multi-turn valves to quarter-turn stops—the faster mechanism makes a big difference when the main water supply must be shut quickly during emergency plumbing situations or when a valve needs to be replaced.

Materials matter. Most angle stop valves are brass or chrome-plated brass. Stainless steel bodies exist for harsh conditions. Plastic-bodied stops appear in some systems but are less common for long-term durability. For potable water, choose a lead-free angle stop that meets current rules. For potable water, choose a lead-free angle stop that meets current rules and offers the durability needed for homeowner use, residential plumbing, and long-term water management safety, according to the U.S. Environmental Protection Agency (EPA).

Which way to turn an angle stop? To close, turn the handle clockwise (righty-tighty). To open, turn counterclockwise. On quarter-turn models, align the handle with the flow for open and crosswise for closed.

Types, Mechanisms, and Connections

The words angle stop, shut-off valve, fixture stop, and supply stop often describe the same thing at the fixture level, but types of angle stop valves vary widely, and understanding the different types of angle stop helps you choose correctly. And the inner mechanism and the way it connects to your pipe can differ.

Mechanisms

The mechanism is the internal design that controls water flow. It affects shut-off speed, reliability, and how the handle feels.

Mechanism	Handle travel	Strengths	Considerations	Common use today
Ball (quarter-turn stop)	90 degrees	Fast shut-off, low torque, resists sticking, long service life	Slightly higher part cost vs. old styles	Most new residential installs
Globe (multi-turn stop)	Several turns	Fine flow control	More turns, packing can weep over time	Older homes, some legacy systems
Gate (multi-turn)	Several turns	Good flow when fully open	Not ideal for throttling, can seize if rarely used	Industrial or legacy

Most homes today use the quarter-turn ball valve stop. It is easy to read at a glance: handle in line means open, across means closed. It seals with a polished ball and seats, so it is less prone to stem leaks. Multi-turn valves use a stem and packing. If you notice seepage around the stem, snug the packing nut slightly. If it keeps weeping, replace the valve.

Connection types

How the valve connects to the supply pipe is just as important. You will see four common connection families:

Compression stop: A nut and ferrule (ring) squeeze onto a copper or CPVC stub-out. This is common and serviceable without heat. It requires a clean, round pipe.
FIP stop (female iron pipe): Screws onto a threaded male adapter on the pipe. Use thread sealant or PTFE tape on the male threads. Do not overtighten.
Sweat stop (solder): Soldered to copper tubing. Offers a slim profile and strong joint, but you need a torch and must protect nearby finishes. Do not overheat seats.
Push-to-connect angle stop: Also known as push-fit. It slips onto a cleaned copper, CPVC, or PEX pipe and locks with internal teeth and an O‑ring. It is fast and friendly for DIY. Follow depth marks and include the PEX stiffener when needed.

Selection tip by pipe type:

Copper stub-out: Compression, sweat, FIP (with adapter), or push-to-connect all work.
PEX: Push-to-connect works with a pipe stiffener; some compression stops are PEX-rated (use the correct insert). Crimped or expansion PEX angle stops exist but are less common at the fixture.
CPVC: Compression (CPVC-rated components) or push-to-connect are common; solvent-weld adapters also used with FIP stops.

Specialty features

Angle stops with water hammer arrestors: A small air chamber or piston is built onto the stop to absorb shock when a valve or appliance closes quickly. If your pipes bang when the washer or toilet stops filling, an arrestor-equipped stop can help.
Lead-free angle stop valve: Required for potable water. Look for markings that show the valve meets the current lead-free rule for wetted surfaces.
Quarter-turn premium features: Some models add larger handles, anti-seize stems, or corrosion-resistant finishes for high-humidity areas.

Sizing and dimensions

A few numbers show up over and over. The typical inlet to the stop is 1/2 inch nominal. On copper tubing, that equals 5/8 inch OD. On threaded connections, that is 1/2 inch FIP. The outlet to the faucet or toilet supply is usually 3/8 inch OD compression.

Size quick-reference:

Common inlet size to the wall/pipe: 1/2 inch nominal (5/8-inch OD copper, 1/2 FIP, 1/2 sweat, or push-fit for 1/2 pipe).
Common outlet to flexible supply: 3/8-inch OD compression for both faucets and toilets.
Toilet supply hose note: Most toilet fill valves connect with a 7/8-inch ballcock thread at the tank end; the angle stop end is usually 3/8-inch compression. So you typically choose a 1/2 x 3/8 angle stop and a 3/8 x 7/8 supply line for the toilet.

How to size for replacement: Read the marking on the outlet nut (often 3/8 COMP). Measure the inlet pipe. Copper tubing OD is easy to check with a tape measure. If you have a threaded adapter, note 1/2 or 3/8 marking on the fitting. When in doubt, take the old stop to a plumbing counter.

How to Choose the Right Angle Stop (Decision Guide)

Start with two questions: What pipe are you connecting to, and who will install it? If you are a homeowner or DIYer replacing one stop, a push-to-connect angle stop or a compression stop keeps things simple. A contractor may prefer compression or sweat for a slimmer look and known performance. In both cases, a quarter-turn ball valve stop is the go-to pick for fast shut-off.

Homeowner quick guide:

Choose a lead-free, quarter-turn stop that fits your pipe. If you hear banging pipes, pick a model with a water hammer arrestor. If your pipe is copper or CPVC and you have basic tools, a compression stop is straightforward. If you want the fastest swap with the least tools, a push-to-connect angle stop works on copper, CPVC, and PEX. These stops are used to control water to a single appliance or fixture, letting you turn the water off quickly. If your old stop leaks due to outdated parts, replace it with a modern model designed to last.

Contractor/facilities:

Look at durability, serviceability, and code compliance. Quarter-turn ball valves are now standard for most facilities because they hold position well and resist sticking. In a large building, standardize on a small set of SKUs: 1/2 x 3/8 angle stops with compression outlets for sinks and toilets, and match your most common inlet (1/2 compression, 1/2 FIP, or push-fit). Arrestor stops at quick-closing fixtures reduce callbacks for noise.

Industrial:

Where pressures, temperatures, or chemicals are higher, select robust ball or angle gate variants with published pressure/temperature ratings. Verify body alloy, seat material, and certification for the media in use. In some cases, a full-port design and stainless body provide longer life.

Environment and water quality:

Mineral buildup from hard water can seize older multi-turn valves; a quarter-turn ball mechanism resists this. In coastal or damp spaces, corrosion-resistant finishes help. For potable water, a lead-free marking is a must. For very high pressure zones, confirm the valve rating meets or exceeds system pressure.

Compliance essentials:

For drinking water lines in the U.S., valves must be lead-free. Angle stops must be accessible and installed on fixture supplies per local plumbing code. Verify pressure and temperature ratings for residential (often 125–150 psi and 180–200°F max, system-dependent). Check regional rules for approved connection methods, especially on PEX and CPVC.

Cost vs. longevity:

A quarter-turn ball stop usually costs a few dollars more than a multi-turn globe stop but pays off with fewer stuck valves and faster emergency shutoff. Arrestor-equipped stops cost more, yet can prevent noise complaints and stress on joints.

What is the most common angle stop? In today’s homes, it’s a quarter-turn brass ball-valve angle stop, 1/2 inch inlet to 3/8 inch compression outlet.

Installation: Step-by-Step (with Safety and Pro Tips)

Before diving into the actual steps, it helps to know what’s coming. Replacing an angle stop isn’t complicated, but it does require a bit of prep, the right tools, and a slow, steady approach. The guide below walks you through everything—removing the old valve, installing the new one, and checking for leaks—so you can avoid the usual pitfalls. Ready to get started? Let’s begin with the basics.

Before you start

Shut the main water if the existing stop won’t close fully. Open a faucet to relieve pressure. Keep towels and a small bucket handy.
Tools: adjustable wrench and a backup wrench, tube cutter (if trimming), deburring tool, emery cloth for copper, PTFE tape and/or thread sealant for threaded joints (as applicable), a marker, and a flashlight.

Replacement steps (compression stop)

Identify connection and size: Confirm pipe type and outlet size (commonly 3/8 compression).
Remove old stop: Hold the valve body with a backup wrench. Loosen the compression nut. If it sticks, use penetrating oil. Pull the valve off.
Prep pipe: If reusing the ferrule and nut is risky (grooved or distorted), cut the stub-out back slightly with a tube cutter. Deburr and clean the copper with emery cloth.
Install new stop: Slide the new nut and ferrule on. Seat the valve fully against the pipe shoulder. Hand-tighten the nut, then tighten another 1/4–1/2 turn with wrenches. Do not over-tighten.
Connect the supply line: Attach the 3/8 compression outlet to the faucet or toilet supply line. Snug, do not overtighten.
Turn on and leak-test: Slowly open the main. Then open the angle stop. Watch for drips. Wipe joints with a dry tissue to spot weepers.

Replacement steps (FIP stop)

Wrap the male adapter with PTFE tape (3–4 wraps) and add thread sealant if desired.
Thread the FIP valve on by hand to avoid cross-threading. Tighten with a wrench until snug and aligned.
Connect supply line and test for leaks.

Replacement steps (sweat stop)

Shut and drain the line fully. Protect surfaces with a heat shield.
Clean and flux the copper and valve cup. Heat the joint evenly and flow solder. Do not overheat the valve body.
Let cool. Wipe residue. Connect supply line and test.

Replacement steps (push-to-connect angle stop)

Cut the pipe square. Deburr and mark the insertion depth per the fitting chart.
Push the valve on straight to the depth mark. Tug gently to confirm it locked.
Connect supply line and test.

Common pitfalls to avoid

Over-tightening a compression nut can deform the ferrule and cause leaks.
Soldering with the valve assembled can damage internal seals. If sweating close to rubber seats, remove internals (if the design allows) or use heat sinks.
Mixing sizes: The outlet to the fixture is usually 3/8 compression. Confirm before you buy.
Twisting the stub-out: Always use a backup wrench on the valve body when tightening the outlet nut.

Quality check

Cycle the valve fully open and closed. A quarter-turn should feel smooth.
Inspect for weepers after 15–30 minutes and again the next day. Some leaks show up after pressure stabilizes.
Wipe joints dry and check for any moisture halos around the shut-off valve.

How much does it cost to change an angle stop? Parts typically run $6–$25 for a basic quarter-turn stop, $12–$30 for push-to-connect, and $25–$60 for an arrestor-equipped stop. Pro labor varies by region, but a single replacement often falls in the $75–$200 range, with each additional stop costing less when done in the same visit.

Troubleshooting and Maintenance (Fast Diagnostics)

A small drip today can be a soaked cabinet tomorrow. Here are quick fixes and when you should replace an angle stop valve, especially when the valve can no longer work as an emergency shutoff valve during a leak.

Handle won’t turn

Cause: Mineral buildup or a worn stem in older multi-turn stops.
Fix: Gently work the handle back and forth; do not force. For multi-turn, a light stem lube can help. If it still sticks, replace the valve with a quarter-turn stop.

Drip at the stem (around the handle)

Cause: Packing nut loosened with age or thermal cycles.
Fix: Use a wrench to snug the packing nut 1/8 turn. If dripping continues, replace the valve.

Leak at the compression joint

Cause: Ferrule not seated, pipe not clean/round, or over-tightened.
Fix: Shut water, loosen and re-seat the ferrule. If the ferrule is grooved, replace the ferrule and nut, then retighten carefully.

Weeping at the body or persistent seep after repair

Cause: Cracked body or pitted seat.
Fix: Replace the valve. Do not try to patch the body.

Water hammer or pipe noise

Cause: Rapid shut-off of water flow, often from appliance valves.
Fix: Install an angle stop with a built-in water hammer arrestor, or add a separate arrestor near the noisy fixture.

Preventive maintenance

Exercise the valve quarterly: close and open it to keep parts free.
Inspect annually for corrosion, mineral crust, or dampness around the shutoff valve and supply line.
Replacement triggers: frozen handle, recurring leaks, visible corrosion, very old multi-turn valves that no longer seal, or any valve that fails to shut water off reliably.

Upgrade path

When you replace a sink or toilet supply line, it is smart to upgrade the stop to a quarter-turn ball-type. It gives you better emergency shutoff and simpler operation for everyone in the home.

How to fix a leaking angle stop valve? First locate the leak. If it is at the stem, snug the packing nut slightly. If it is at a compression joint, re-seat or replace the ferrule and nut. If the body leaks or the valve will not seal the water flow, replace the valve. In many cases, replacing an old stop is faster and safer than trying to rebuild it.

Real-World Use Cases and Trends

Residential: In most modern homes, every water-using appliance and fixture now has its own stop valve. That means a plumber can replace a faucet, toilet fill valve, or dishwasher without shutting the entire home. It also means a homeowner can stop a leak fast, even if the main shut-off is hard to reach.

Commercial: In offices, schools, and retail, localized isolation limits downtime. A restroom can stay open while one sink is serviced. Standardizing parts—such as quarter-turn 1/2 x 3/8 angle stops—simplifies maintenance and stocking.

Industrial: Angle gate or heavy-duty ball variants isolate process lines. Here, pressure, temperature, and media compatibility drive the choice more than form factor. The L-shape still helps when routing lines from walls into equipment.

Trends and stats at a glance (industry estimates)

90–95% of North American fixtures have dedicated angle stops.
More than 60% of new installs use ball-valve, quarter-turn stops.
Built-in water hammer arrestors are gaining share in new construction.

Brand and Innovation Comparison (Non-Commercial Overview)

What do pros compare when picking an angle stop? Mechanism type comes first. Quarter-turn ball valves dominate because they shut off quickly and resist sticking. Build quality matters: full-brass bodies and plated finishes hold up better in damp cabinets. Lead-free certification is required for potable lines. Handle ergonomics matter more than you think; a larger lever can be turned by a child or an older adult in an emergency. Serviceability counts too—standard outlet sizes and common nuts make swapping supply lines easier years later.

Innovations to watch include quarter-turn dominance across categories, integrated arrestors for noisy runs, and corrosion-resistant finishes for bathrooms or coastal areas. On the connection side, push-to-connect stops continue to improve, making clean, tool-light repairs more common.

Procurement tips for facility managers and B2B buyers: Standardize SKUs to reduce errors. Verify lead-free markings and pressure/temperature ratings. Keep an inventory of the most-used sizes: 1/2 inlet x 3/8 compression outlet. For noisy fixtures, stock a few arrestor-equipped stops to cut noise complaints right away. Choose stop valves designed to last, not just the lowest initial cost, to reduce lifecycle spend.

Compliance and Standards

Before choosing or installing an angle stop, it’s worth taking a moment to understand the basic rules that keep your plumbing safe, legal, and reliable. These standards aren’t complicated, but they do matter—especially when it comes to potable water, operating pressures, and what your local code actually requires. The points below give you a quick reference so you can double-check that your valve, connections, and documentation all meet the right expectations.

Lead-free and potable water suitability:

In the U.S., wetted surfaces in drinking water systems must meet the lead-free rule. Confirm markings and documentation. This protects health and meets law requirements for fixtures and valves on potable lines.

Pressure/temperature ratings:

Check the rating on the valve body or spec sheet. Residential systems often operate at 40–80 psi, but local spikes can be higher. Valves are commonly rated well above that, yet you should still verify. For hot-water supplies to sinks, confirm the maximum temperature rating matches your system.

Local code considerations:

Many regions require a shut-off valve at each fixture. The valve must be accessible. Approved connection methods vary by pipe type and jurisdiction. Some areas require listed arrestors on certain quick-acting fixtures. Always follow the local plumbing code in force.

Documentation to keep:

Keep install dates, model numbers (or at least type and size), and a simple maintenance log that shows when valves were exercised. For commercial sites, log replacements and leak checks during routine inspections.

Conclusion

Angle stop valves give fast, local control of water at each fixture. That means you can repair or replace a faucet, fix a toilet, or stop a leak without touching the main. Choose quarter-turn ball-type, lead-free models sized to your supply and fixture. Install with care, test for leaks, and exercise the valves every few months. A small stop valve can save you big on water damage and stress.

FAQ

1. When should angle stops be replaced?

Replace when the handle is frozen, the valve will not shut water off, there’s recurring seepage at the stem, you see corrosion around the body, or the valve is very old and brittle. In real-life use, if you notice the handle getting harder and harder to turn, or you need to force it just to stop water flow, that’s usually an early warning sign. Any greenish crust, rust, or white mineral buildup means the metal is breaking down. And honestly, if your home is older and the angle stops have never been touched, it’s often safer to just replace them before they fail. If you are changing a faucet or toilet supply line, it is smart to upgrade the angle stop at the same time since everything is already accessible.

2. Which way to turn angle stop?

Turn clockwise to close (righty-tighty). Turn counterclockwise to open. This applies to both sink and toilet angle stops. On quarter-turn models, a simple 90-degree move does it—super easy and you’ll feel a firm stop when it’s fully closed. If yours feels gritty or stiff while turning, go slow; older valves can get stuck or leak if forced.

3. What size angle stop for toilet?

Most toilets use a 1/2-inch inlet at the wall and a 3/8-inch compression outlet on the angle stop. The supply hose from the stop to the toilet tank is 3/8 compression x 7/8 ballcock. These are the most common sizes in North America, so you’ll find them in almost any hardware store. If your home is very old or remodeled several times, it’s a good idea to double-check because some older homes still have odd pipe sizes or even soldered-on valves.

4. How to turn off angle stop toilet?

Reach the handle behind the toilet and turn it clockwise until it stops. It usually just takes a firm twist. If you hear the water trickle slow down and then stop, you’ve done it right. If it leaks or will not turn, shut the main water supply and replace the valve. A stuck valve often means the internal seal has worn out or mineral buildup has frozen the mechanism.

5. How to fix a leaking angle stop valve?

If the leak is at the handle, snug the packing nut 1/8 turn. Just a tiny tweak usually stops slow drips. If it is at the compression joint, re-seat the ferrule or replace it—sometimes the old ferrule just doesn’t bite properly anymore. If the valve body leaks or the valve will not seal, replace the entire stop. At that point repairs usually won’t hold, and a new valve saves you from future surprises under the sink or toilet.
